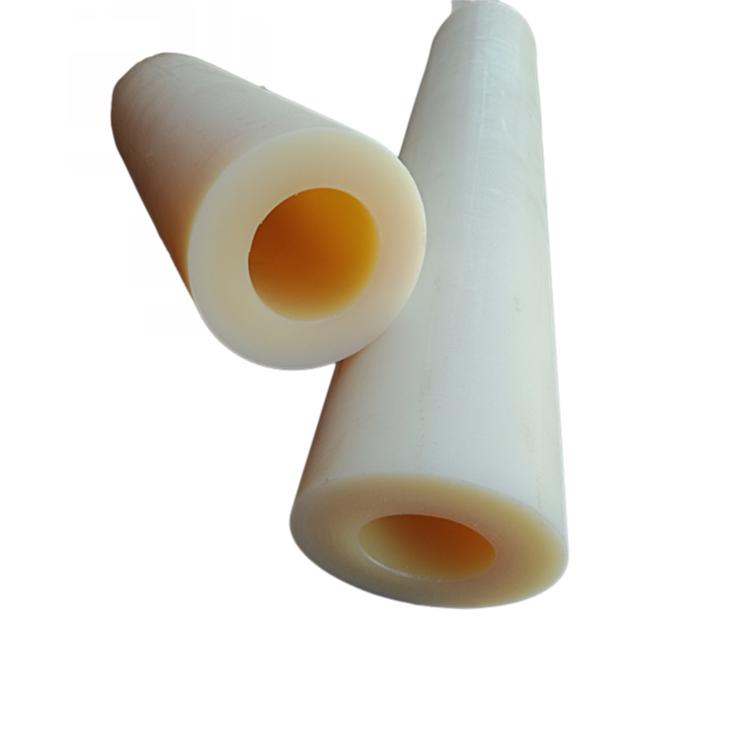

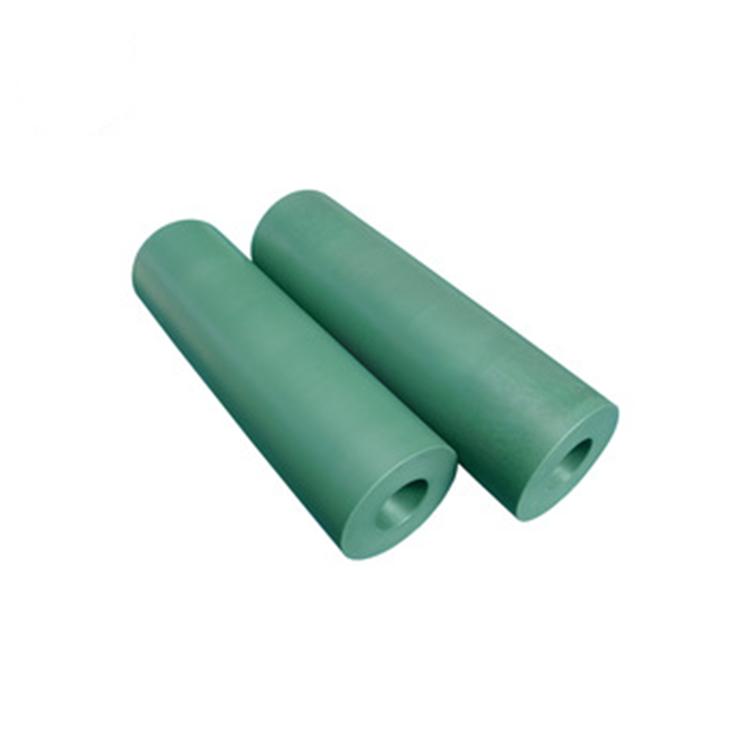

NYLON 6 TUBE DESCRIPTION
Anyang Honesty Technology is a well-known manufacturer of cast nylon 6 tube in China. Our products have long service life, stable quality, low cost and good service.
NYLON 6 TUBE FEATURES
1.Excellent wear resistance
2.High self lubricity
3.Excellent impact resistance
4.High temperature creep resistance and excellent low temperature resistance
5.Chemical corrosion resistance, fatigue resistance and low noise
NYLON 6 SHEET DATASHEET
| Basic |
density |
|
ASTM D-792 |
1.15 |
| physical |
molding shrinkage |
|
ASTM D-955 |
1.5-2.0 |
| Mechanical |
bending strength |
|
ASTM D-790 |
88 |
| |
Non notch impact strength of simply supported beam |
|
ISO 179 |
>100 |
| |
tensile strength |
|
ASTM D-638 |
62 |
| |
bending modulus |
|
ASTM D-790 |
2×10 |
| |
Notched Izod impact Strength |
3.2mm thick |
ASTM D-256 |
50 |
| |
Notched impact strength of simply supported beam |
|
ISO 179 |
10 |
| Electrical |
dielectric strength |
2mm thick |
ASTM D-149 |
21 |
| |
volume resistivity |
|
ASTM D-257 |
10 |
| |
permittivity |
10 |
ASTM D-150 |
3.1 |
| Thermal |
distortion temperature |
1.82MPa |
ASTM D-648 |
65
|
NYLON 6 TUBE APPLICATIONS
Our mc nylon 6 tube is widely suitable for turbines, gears, bearings, pipe liner, cranks, dashboards, drive shafts, valves, blades, screw rods, high-pressure washers, screws, sealing rings, shuttles, sleeves, bushing connectors, etc.
